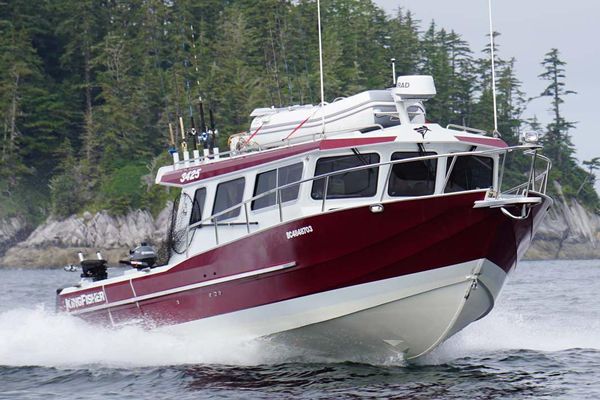

KingFisher 3425 GFX Offshore - main image

2020 KingFisher 3425 GFX Offshore

Year 2020
Length 35'1 ft

Great Fishing & Exploring (GFX): the model name says it all. A proportionally balanced 10' beam, shearwater bow design and an internally reinforced structural impact grid with a 7/16" keel guard — this boat is built for adventure. Notables are the spacious cockpit for maximum fishability and plenty of comfortable cabin seating with 6'10" headroom.

Specifications

Year Built 2020
Category Power
Length Overall 35'1 ft
Beam 10 ft
Cabin Headroom 6'10 ft
Construction Aluminum
Deadrise Angle 18 °
Engines 2
Fuel Tanks 1
Fuel Tank Cap. 250 gal
Dry Weight 9,510 lb

Engine 1 Specifications

Type: Outboard

Engine 2 Specifications

Type: Outboard
Hull
  • Exclusive Pre-Flex® hull technology
  • Shearwater bow design with internally reinforced structural impact grid
  • Engineered full length reverse chines
  • Performance lifting strakes
  • Formed compound angle full length box stringers
  • Fully welded bow stem & heavy duty keel guard for 7/16" total keel thickness
  • Fully welded external rub rails / hull stiffeners
  • Closed cell polyurethane foam below cabin deck
  • Anchor rope locker / self draining with exterior/interior access hatch
  • Water tight cabin bulkhead with heavy duty weather tight sliding cabin door
  • Forward sloping windshield with 3 aluminum framed safety glass windows
  • Aluminum framed side slider and bulkhead windows
  • 3 heavy duty pantographic windshield wipers
  • Raised self-bailing cockpit deck with commercial freeing ports
  • 2 fish lockers in cockpit floor with discharge pumps
  • Transom fish locker with cutting board and fish rail
  • Aft cockpit storage trays and aluminum cockpit toe rail
  • Full width integrated offshore motor bracket with walk-thru transom door
  • Welded bow eye with stainless sleeve and 2 welded aluminum stern eyes
  • 7 x 9" heavy duty welded bow and stern cleats
  • Hydraulic steering with center mount cylinders
  • Stainless steel 1-1/4" diameter bow rail
  • Foul weather bow coamings with hawse rings
  • Bolt on sacrificial hull anodes
  • Speckle painted gunnels, cabin walls & interior
  • Exterior full side paint color choice with KingFisher standard decal
  • Color matched paint visor and roof cap
Electronics
  • 12V power point & dual USB outlet
  • Marine color coded wire harness with water tight connections
  • 3 electric 1000 gph auto bilge pumps & high water bilge alarm
  • Navigation lights package
  • Interior LED cabin & v-berth lighting
  • Twin engine battery management system with remote panel
  • Trim tabs with dash indicators
  • Dual compact electric horn
  • Carbon monoxide detector
Aft Cabin
  • Single berth in aft cabin
  • Opening porthole with window with screen
  • Full hull liner with solid wood accent trim
Cabin
  • Kingleather urethane upholstery coverings with port and starboard full suspension helm seats with slider
  • Solid wood finished helm and dinette seat boxes with storage
  • Dinette seating for 6 converts to queen sleeping berth
  • Stand up enclosed head with 40 gallon holding tank, sink with storage cabinet, electric flush toilet, macerator and deck fill pumps
  • Full lined interior walls and headliner
  • Side cabin window valances with curtains
  • Easy care marine vinyl floor with stainless drains
  • Extra large dash panel for flush mounted electronics
  • Underfloor utility locker
  • Solid wood finished radio shelf panel, headstall door & dash trim
  • Mahogany accent stainless spoke steering wheel
Galley
  • Hand crafted high gloss solid inlayed wood cabinets with drawers & cupboards
  • Stainless steel sink & 40 gallon fresh water tank
  • 4.3 cubic foot DC fridge with freezer shelf
Cuddy Cabin
  • Finished cuddy with hull liner and solid wood accent trim
  • Premium v-berth cushion
  • Carpeted storage compartment and overhead shelves
  • Cuddy hatch with screen and 2 portholes with screens
